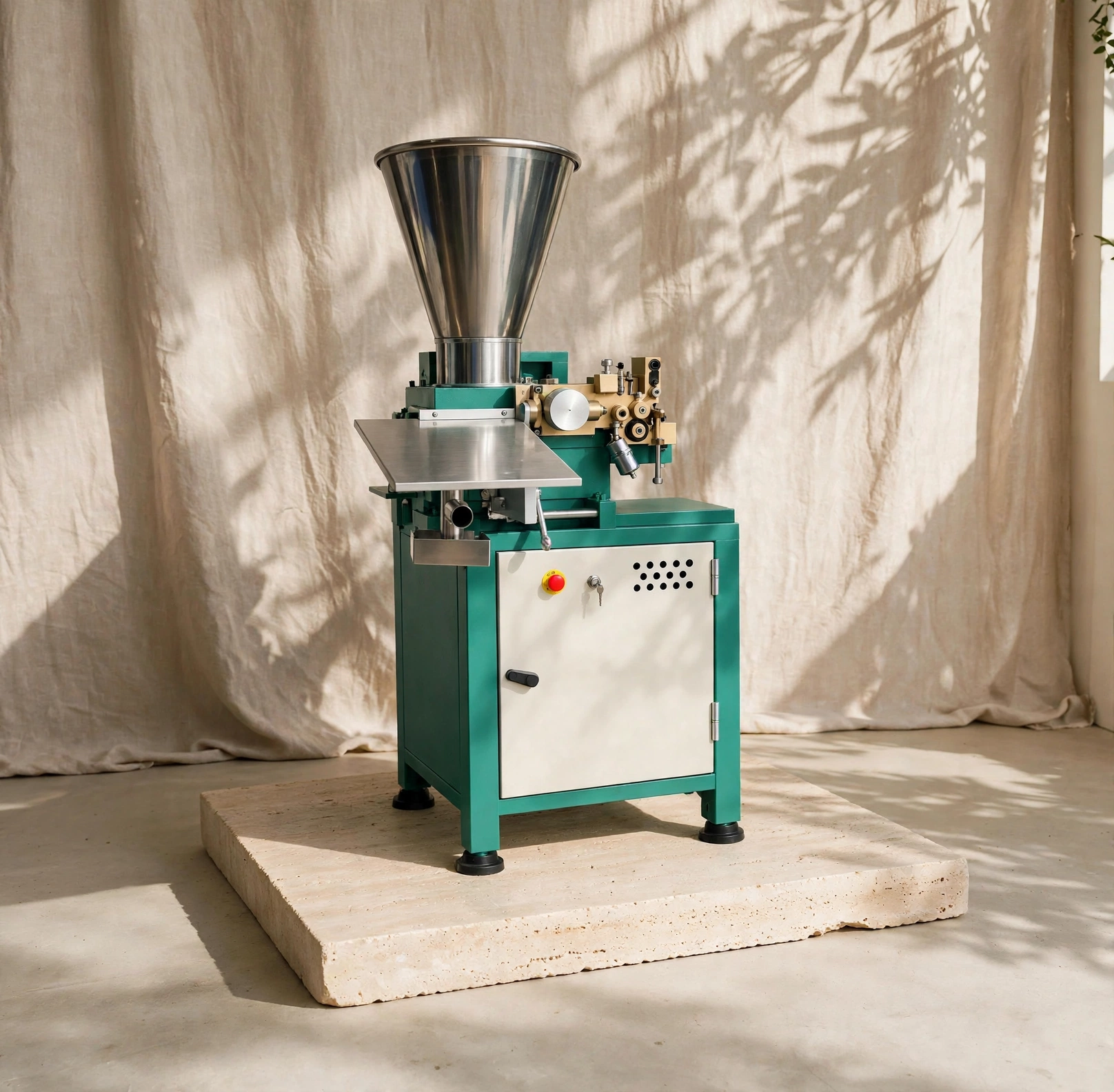

Big Dhoop Stick Making Machine – High-Volume Jumbo Incense Press
Diversify your product catalog and capture high-margin incense markets with the HATRI Big Dhoop Stick Making Machine. Designed specifically for manufacturing bambooless jumbo sticks, thick dhoop logs, and meditation sticks, this heavy-duty unit processes diameters from 8 mm up to 20 mm and adjustable cut lengths from 1 inch to 8 inches.
Powered by a dual-power motor-and-drive system (3 HP Motor with a 5 HP Heavy-Duty Drive), this machine operates at 60 to 120 strokes per minute, delivering dense, smooth, crack-free dhoop sticks built for commercial multi-shift manufacturing.
Technical Specifications
| Technical Parameter | Specification / Performance Metric |
| Product Diameter Range | 8 mm to 20 mm (interchangeable precision dies) |
| Dhoop Stick Length | 1″ to 8″ (adjustable cutting/extrusion length) |
| Operating Speed | 60 – 120 strokes / minute |
| Drive System | 5 HP Heavy-Duty Industrial Drive |
| Main Motor | 3 HP High-Torque Motor |
| Electrical Power Options | Single Phase (220V) or 3-Phase (380V), 50/60 Hz |
| Machine Dimensions | 600 mm × 500 mm × 1000 mm |
| Machine Net Weight | Approx. 180 kg (vibration-dampened steel frame) |
| Compatible Materials | Charcoal powder, sawdust, sandalwood/wood flour, jigat binder, resin pastes |
| Core Type | Coreless (bamboo-less dhoop sticks & cylindrical logs) |
Why Add This Machine to Your Production Line?
-
Launch High-Margin Product Lines: Standard incense sticks face intense price competition. Producing thick 8mm–20mm jumbo sticks, temple logs, and coreless dhoop sticks allows you to tap into premium organic, natural, and export-grade markets.
-
Consistent High-Density Compaction: The combination of a 3 HP motor and a 5 HP drive provides the deep continuous force required to compress thick dhoop paste without leaving internal air pockets or soft cores.
-
Smooth, Crack-Free Extrusion: Precision-machined extrusion nozzles prevent the rough edges, bending, and surface fracturing that often plague thick-diameter incense during the drying stage.
-
Rapid Speed & Throughput: Running up to 120 strokes per minute, this unit keeps daily production high while requiring only a single operator to manage feeding and tray collection.
-
Compact, Space-Saving Footprint: At 600 × 500 × 1000 mm, the 180 kg rigid frame minimizes plant floor usage while remaining stable under full continuous vibration.
Frequently Asked Questions (FAQ)
Can I adjust both the diameter and length on the same machine?
Yes. Changing diameters simply requires swapping the front extrusion die (from 8 mm up to 20 mm). The cutting mechanism is fully adjustable to set stick lengths anywhere between 1 inch and 8 inches.
What type of paste formula works best for thick dhoop sticks?
Jumbo sticks require a slightly firmer paste than thin bamboo sticks to prevent sagging before drying. Formulations using wood powder, charcoal, and natural binders like jigat powder with 16%–20% moisture content yield the cleanest cut and straightest dry sticks.
Is single-phase electricity sufficient to run this machine?
Yes. The machine is engineered to support either standard single-phase 220V power or industrial 3-phase 380V power, allowing installations in both regional workshops and large industrial facilities.
