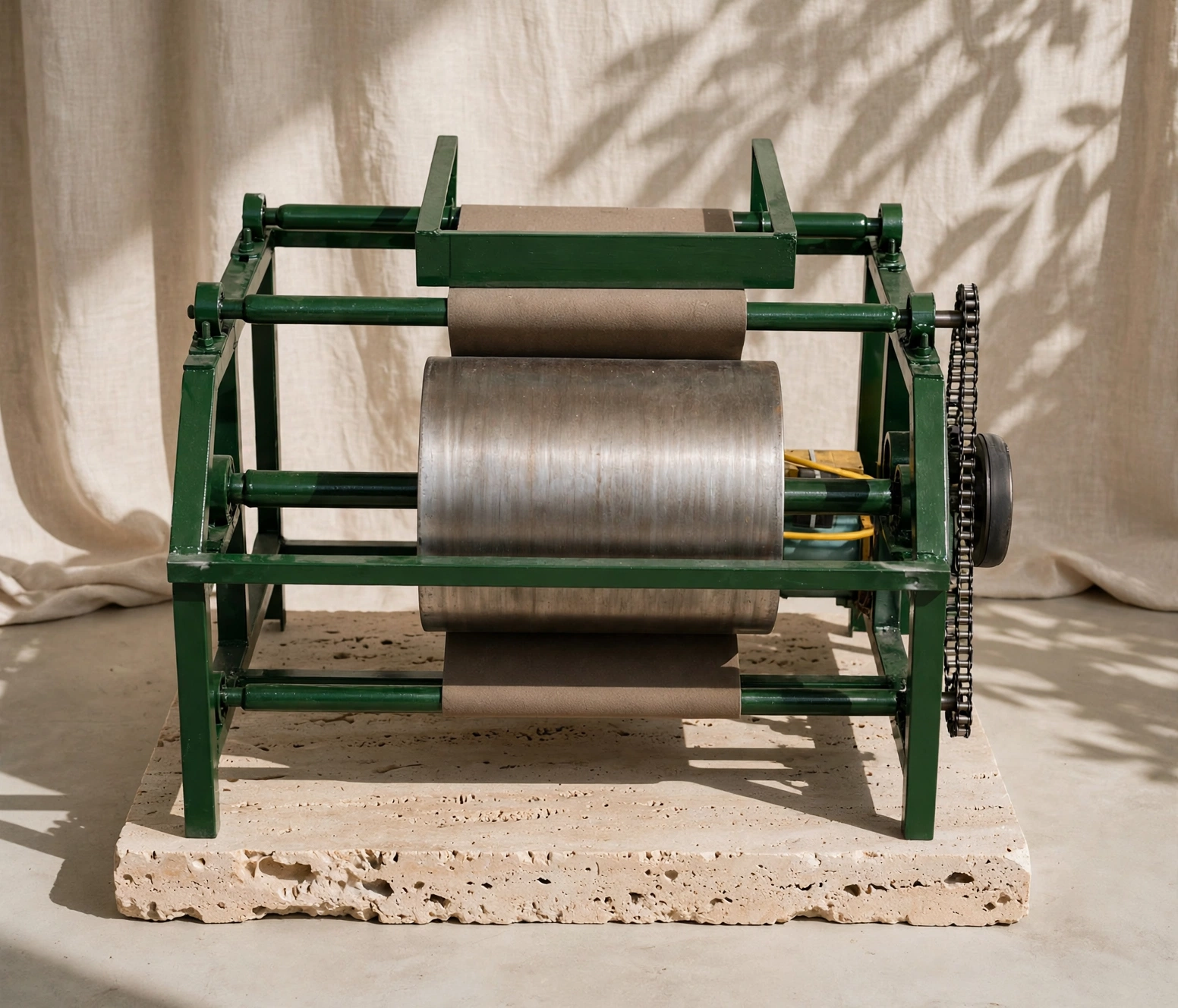

Semi-Automatic Hand Rolling Incense Stick Machine (Model: HAT 11) – Flora & Wet Masala Agarbatti Roller
Bridge traditional artisanal craftsmanship with modern workshop productivity using the HATRI HAT 11 Hand Rolling Incense Stick Machine. Engineered specifically for high-end flora incense sticks and traditional wet masala dough, this compact machine eliminates the slow, labor-intensive bottleneck of rolling every single stick manually between two palms or on a wooden rolling board.
With the HAT 11, operators simply apply the wet masala paste onto the bamboo stick and place it into the rolling guide; the motorized roller mechanism compresses and smooths the paste evenly around the bamboo core, ejecting uniform, finished flora agarbatti in seconds. Especially, the machine works with square bamboo sticks.
Technical Specifications
| Technical Parameter | Specification / Performance Metric |
| Model Code | HAT 11 |
| Machine Type | Motorized Flora Incense Rolling Machine |
| Primary Specialty | Flora incense sticks / Sticky wet masala pastes |
| Motor Power | 0.5 HP Energy-Efficient Motor |
| Electrical Power | Single Phase (220V, 50/60 Hz standard plug) |
| Compatible Stick Lengths | 8 inches to 19 inches (8″–19″) |
| Operation Mode | Semi-automatic (Manual paste prep + motorized rolling) |
| Compatible Bamboo Cores | Standard round and square bamboo sticks |
| Target Users | Masala agarbatti producers, artisanal workshops, medium dhoop plants |
| Manufacturer | HATRI (Vietnam) |
Key Operational Benefits for Flora Incense Producers
-
Eliminates Manual Rolling Fatigue: Traditional hand-rolling causes severe wrist strain, calluses, and uneven output as workers tire. The HAT 11 takes over the heavy friction work, allowing operators to sustain consistent speed throughout an entire shift.
-
Specialized for Wet, Sticky Masala: High-speed extrusion machines often jam or heat up when processing resinous, sticky, oil-rich flora formulas. The HAT 11’s rolling contact mechanism is custom-tailored to handle soft, moist masala pastes smoothly.
-
Uniform Thickness & Perfect Surface Finish: Manual rolling often results in lumpy, tapered, or uneven sticks. The HAT 11 ensures constant compression along the entire coated surface, resulting in straight sticks that dry evenly and burn cleanly.
-
Wide Length Range (8″ to 19″): Effortlessly accommodates short everyday 8″–9″ devotional sticks up to extra-long 19″ meditation and temple masala sticks.
-
Ultra-Low Power Overhead: Powered by a quiet 0.5 HP motor running on standard single-phase household voltage, making it easy to install in both decentralized cottage units and large factory departments without 3-phase power upgrades.
Frequently Asked Questions (FAQ)
How does the HAT 11 improve upon 100% manual hand rolling?
In purely manual production, an experienced worker must roll each stick back and forth to achieve roundness and bond the masala to the stick. With the HAT 11, the operator only spreads the dough; the motorized roller executes the tight compression in one quick pass, significantly increasing daily output per worker while standardizing thickness.
Can this machine process sticky resin pastes like Halmaddi or natural gums?
Yes. The machine is engineered specifically for wet, tacky dough formulations containing natural gums, Halmaddi, jigat, and essential aromatic oils that typically clog conventional automatic piston or screw extrusion machines.
How difficult is it to change between different stick lengths?
Adjusting between 8″ and 19″ lengths is quick and mechanical, requiring simple adjustments to the rolling guides to match your bamboo stick size.
